4,89 Sehr gut 172 Bewertungen

PURION 400 110 - 240 V AC Basic


icon
Überwachungsstufe: ohne Überwachungsstufe Überwachungsstufen vergleichen

✓ Reliable quality

✓ Access to spare parts

✓ More than 15 years of experience

✓ Food -like stainless steel

price:
Special price430,22€

incl. VAT Shipping costs will be calculated in the checkout.

Cable extension: Standard 1.5 m
Auf Lager - in 1-3 Werktagen bei Ihnen
PayPal Mastercard Visa American Express Klarna Apple Pay
delivery-truck.png__PID:205694ad-0c81-4c4f-a9a5-a1b05184f262
Schneller & sicherer Versand

box.png__PID:9263acad-f9bf-4141-88c6-71beb2205694
30 Tage kostenlose Rückgabe

Purion Logo neue.png__PID:da4b9263-acad-49bf-a141-88c671beb220
Offizieller Purion Händler

Description

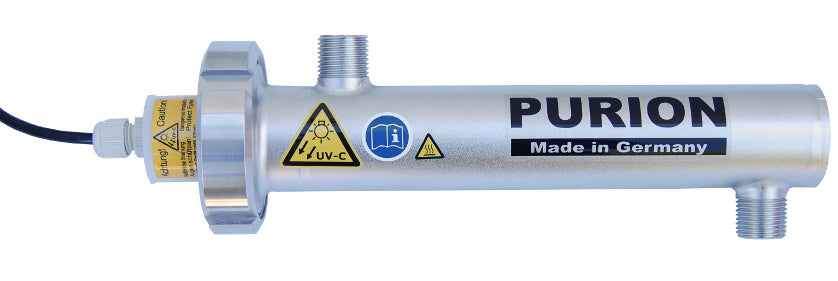

Where space is at a premium, the PURION 400 feels at home. The compact design of just 23.7 cm in length makes it possible to install it in the smallest motorhome. The built-in 10W UV-C lamp prevents the risk of illness that could be caused by water on campsites or at filling stations, both ecologically and economically. With an output of 300 l/h, this system is dimensioned in such a way that it also supplies larger motorhomes with a stable supply of sterilized drinking water. The great advantage is that the water is not altered in terms of smell, taste or composition. Important minerals are retained in the water and do not need to be added. The water does not contain any disinfectants. The low-maintenance and extremely energy-efficient 10W lamp also saves time and money. In future, you can enjoy all the benefits of a motorhome without having to worry about germs in your drinking water.

Thanks to a wide-voltage ballast, this system is designed for a voltage range of 85-264V and can therefore be used in many different countries. The system is equipped with a Euro plug and can also be used for other plug types with an adapter (not included).

This UV-C disinfection system from PURION meets all the technical requirements of the Drinking Water Ordinance. The stainless steel 1.4571 used is also used in the food industry and therefore complies with the standard. The required UV-C dose of 400 J/m² with a UV-C transmission of 90% T1 cm is achieved in compliance with the prescribed maximum flow rate. This UV-C system therefore achieves a disinfection rate of 99.99%, as required by law. For trademark protection reasons, this system does not have a DVGW-Therefore, in individual cases it must be clarified with the health authority whether the UV-C disinfection system can be used.

Verfügbare Überwachungsstufen für dieses Produkt

Unsere UV-C-Anlagen bieten verschiedene Überwachungsstufen, die auf jede individuelle Anforderung abgestimmt sind.

Ohne Überwachungsstufe

Ohne Überwachungsstufe

  • Manuelle Inspektion erforderlich
  • Unabhängig von Technik nutzbar

ab 430,22€

Ausgewählt
Mit Lebensdauer-überwachung

Mit Lebensdauer-überwachung

  • Automatische Laufzeitmessung der UV-C-Lampe
  • LED-Anzeigen für Status und Voralarme (Grün/Gelb/Rot)
  • Einfache Bedienung ohne manuelles Zählen

ab 551,88€

Zum Produkt

Technische Daten

Hier findest du alle technischen Spezifikationen.

Anschluss R 1/2 "
Reaktor Stainless steel 1,4571
UVC-Transmission 90% T1 cm
Anlagentyp PURION 400
Gewicht 1 kg
Dichtung FPM
Wassertemperatur 2 ° C to 40 ° C
Elektrischer Anschluss 110 - 240 V, 50 - 60 Hz
Dosis 400 J/m²
Strahlernutzungsdauer 10,000 h
Leistung 10 W
Absicherung 10 A
Durchsatz 300 l/h drinking water
Flanschabstand 172 mm
Anzahl der Strahler 1
Dimensionen (L x B in mm) 237 x 42
Support

Wir beraten Sie gerne!

Sie haben Fragen oder wünschen eine individuelle Beratung? Unser Experte ist werktags erreichbar.

Öffnungszeiten: Mo–Fr 08:00–16:00

+49 3641 327 9697 info@uvconcept.com
Anfrage zum Produkt stellen

Downloads

Technische Dokumente zum Herunterladen

Lieferumfang

Was im Lieferumfang enthalten ist

- UV disinfection system

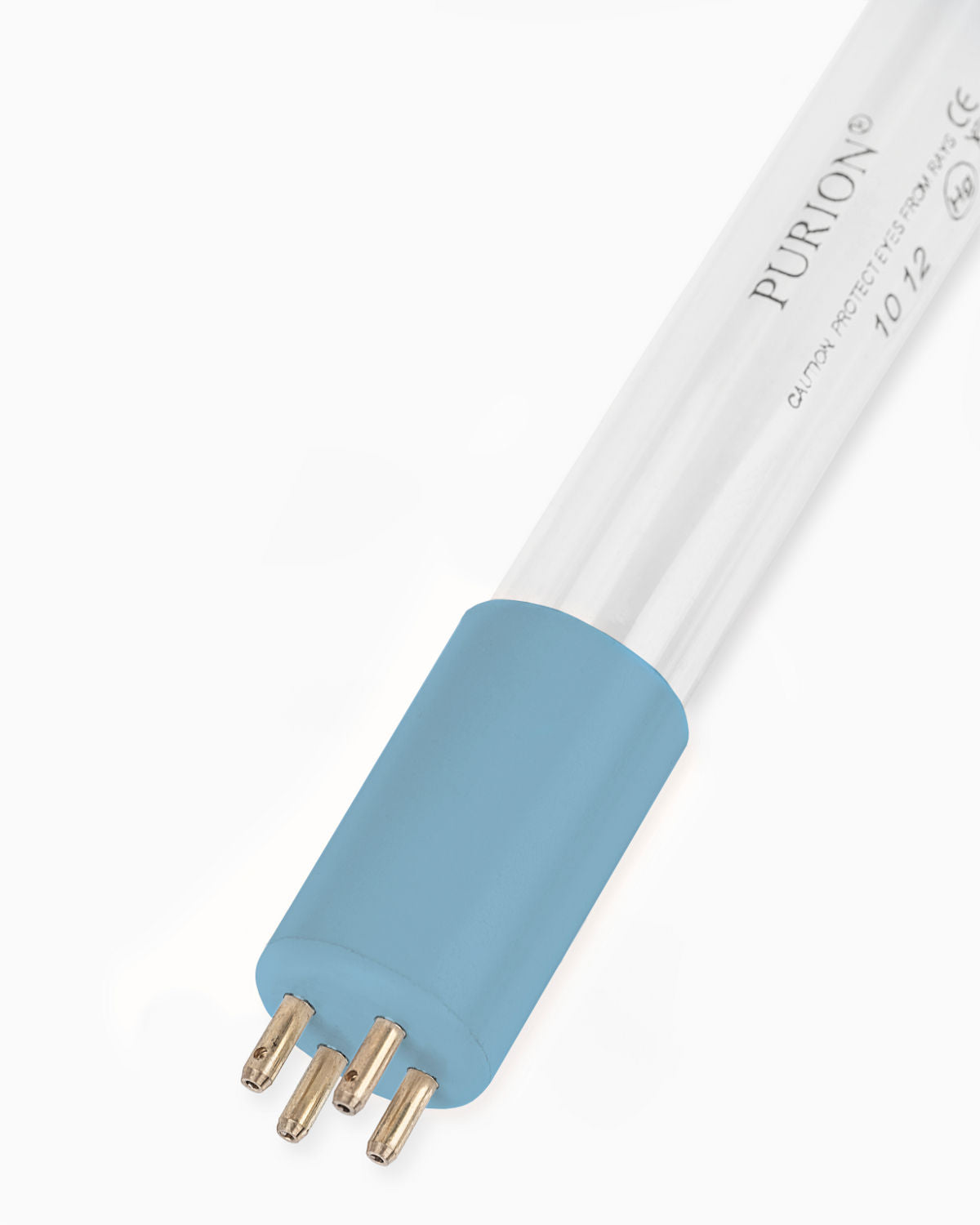

- UV lamp (10 w)
- operating instructions

Häufig gestellte Fragen

Hier findest du Antworten auf die häufigsten Fragen zu unserem Produkt.

A UV-C disinfection system is always the last link in a water treatment chain, as the distance to the tapping point should be kept as short as possible. Water filters in particular offer ideal conditions for colonization by bacteria. The freshly disinfected water would therefore become contaminated again if it were to continue through the drinking water circuit after passing through the UV-C system. Pressure boilers should also always be installed upstream of the UV-C systems.

Lifetime monitoring is recommended for all users who do not leave the system switched on permanently. It is recommended that the lamp is replaced every 10,000 hours, as the manufacturer does not guarantee its performance beyond this, i.e. the amount of UV-C radiation dose required for safe disinfection.

The UV system should be switched on permanently for various technical reasons:
1.) The UV system requires approx. 1 minute to reach full power.
2) When igniting the lamp, approximately as much energy is required as for operation over two hours.
3) Each switch-on and switch-off cycle is detrimental to the service life.

The correct dimensioning of the systems is not based on the maximum daily consumption but on the expected maximum peak rate and is therefore dependent on the performance of the pump.

It must be ensured that no power supply units with pulsed voltage are used, as this can cause irreparable damage to the system.

Yes, this is possible. However, the use of a battery is always recommended for igniting the lamp. In addition, a solar regulator should always be used.

No, we recommend using flow-through reactors, as this precisely defines the maximum distance between the water to be disinfected and the UV-C lamp. A tank disinfection system can only guarantee complete disinfection if it has a previously calculated circulation. In addition, flow-through reactors are significantly more efficient.

Passende Beiträge zum Produkt

Ratgeber zur UVC-Desinfektion: Alles, was Sie wissen müssen - Trinkwasser

UVC disinfection guide: everything you need to know - Drinking water

Experience the benefits of UVC disinfection: chemical-free, effective and sustainable - for germ-free and safe drinking water in every household.
